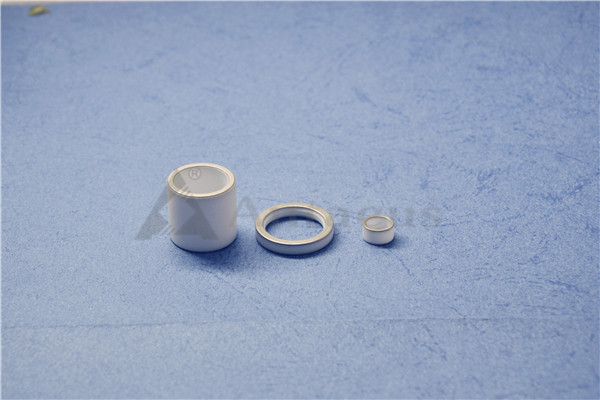

Acid Resistant Alumina Ceramic Rings Ivory Pump Seal
| 起源の場所 | フーナン、中国 |
|---|---|
| ブランド名 | Antaeus |
| 証明 | / |
| モデル番号 | AD-B010 |
| 最小注文数量 | 交渉 |
| 価格 | negotiable |
| パッケージの詳細 | 内部の真空パックの外のカートン。 |
| 受渡し時間 | 15-45日 |
| 支払条件 | T/Tか交渉 |
| 供給の能力 | 完全な供給 |
無料サンプルとクーポンについては、私に連絡してください。
ワッツアップ:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
ご不明な点がございましたら、24 時間対応のオンライン ヘルプをご利用ください。
x商品の詳細
| 製品名 | 電池のための金属で処理されたアルミナ陶磁器リング/陶磁器の絶縁体 | 材料 | アルミナ（酸化アルミニウム、Al2O3） |
|---|---|---|---|
| 絶縁抵抗 | 1000M Ω （1000VDC） | 850Cへの熱衝撃の抵抗の室温 | 5つの操作の後で破烈しないし、漏らない |
| 最高。使用臨時雇用者。 | 1650℃ | 吸水 | 0 |
| ROHSの硬度 | ≥89 | Flexural強さ | 550 Mpa （psix10^3） |
| 耐圧強度 | 2600(377) Mpa （psix10^3） | 熱膨張率 | 8.2 X10^-6/℃ |
| 熱伝導性の係数 | 17-30.4 W/m.K | ||
| ハイライト | Acid Resistant Alumina Ceramic Rings,Ivory Alumina Ceramic Rings,Acid Resistant Ceramic pump Seal |
||
製品の説明
Alumina Seal Ceramic Rings / Industry Insulation Rings
1. Description:
Applications of Ceramic Seal Rings:
1) Electrical seal systems: The highest performance electrical seal systems employ Ceramic Seal Ring for its exceptional resistance to thermal and mechanical shock, as well as corrosion.
2) Medical implant devices: exceptional corrosion resistance and biocompatibility are required by medical implant devices. Ceramic Seal Ring plays a critical role in implantable electronic devices. Researchers and doctors have created a wide array of implantable electronic devices including defibrillators, cochlear implants, and neurostimulators. Feedthroughs for implanted devices must be hermetic, with a leak-tight ceramic seal ring around each pin.
2. Feature Advantages:
1) Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF)
2) Hardness Strength, Wear Resistance Up To Mohz 9.0 ; HRA 80-90
3) High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm
4) High Polished Surface Up To Rz0.8(Ra0.1)
5) Superior Mechanical Strength, MAX 10 MPa.m1/2 Fracture toughness
6) Pressure Resistance, Max 2300MPa compressive strength
7) Anti-High Corrosion Resistance, Such As Acid Alkali Resistance
8) Long Service Life
9) Other excellent property
3. Material Features / Properties:
| Color | White or Ivory | White or Ivory | White or Ivory | |
| Density | g/cm 3 | 3.82 | 3.9 | 3.92 |
| Hardness | HRA | 83 | 85 | 85 |
| Flexural Strength | Mpa (psi*10 3 ) | 375 | 386 | 381 |
4. Technical Parameters:
| Technical Parameters of Ceramics | ||||||||
| Items | Test Conditions | Unit or Symbol | 99% AL2O3 | 95% AL2O3 | 90% AL2O3 | Zirconia | Steatite | Silicon Carbide |
| Volume Density | -- | g/cm3 | ≥3.70 | ≥3.62 | ≥3.40 | ≥5.90 | ≥2.60 | ≥3.08 |
| Tightness | -- | Pa·m³/s | ≤1.0×10-11 | ≤1.0×10-11 | ≤1.0×10-11 | - | - | - |
| Liquid Permeability | -- | -- | Pass | Pass | Pass | Pass | - | |
| Flexural Strength | - | MPa | ≥300 | ≥280 | ≥230 | ≥1100 | ≥120 | ≥400 |
| Elastic Modulus | - | GPa | - | ≥280 | ≥250 | ≥220 | - | 400 |
| Poisson Ratio | - | - | - | 0.20～0.25 | 0.20～0.25 | - | - | - |
| Thermal Shock Resistance | 800℃( Room Temperature) Cycle: 10 times | Pass | Pass | Pass | - | - | - | |
| Coefficient of Linear Expansion | 20℃～100℃ | ×10-6 K-1 | - | - | - | ≤8 | - | |
| 20℃～500℃ | ×10-6 K-1 | 6.5～7.5 | 6.5～7.5 | 6.5～7.5 | 6.5～11.2 | - | - | |
| 20℃～800℃ | ×10-6 K-1 | 6.5～8.0 | 6.5～8.0 | 6.3～7.3 | - | 4 | ||
| 20℃～1200℃ | ×10-6 K-1 | - | 7.0～8.5 | - | - | - | - | |
| Coefficient of Thermal Conductivity | 20℃ | W/(m·k) | - | - | - | - | - | 90～110 |
| 1000℃ | ||||||||
| Dielectric Constant | 1MHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | ≤7.5 | - |
| 1MHz 50℃ | - | - | 9.0～10 | - | - | - | - | |
| 10GHz 20℃ | - | 9.0～10.5 | 9.0～10 | 9.0～10 | - | - | - | |
| Volume Resistivity | 100℃ | Ω·cm | ≥1.0×1013 | ≥1.0×1013 | ≥1.0×1013 | - | ≥1.0×1012 | - |
| 300℃ | ≥1.0×1013 | ≥1.0×1010 | ≥1.0×1013 | - | - | - | ||
| 500℃ | ≥1.0×109 | ≥1.0×108 | -- | - | - | - | ||
| Disruptive Strength | D.C | kV/mm | ≥17 | ≥15 | ≥15 | - | ≥20 | - |
| Chemical Durability | 1:9HCl | mg/c㎡ | ≤0.7 | ≤7.0 | - | - | - | - |
| 10%NaOH | mg/c㎡ | ≤0.1 | ≤0.2 | - | -- | - | - | |
| Grain Size | - | μm | - | 3~12 | - | - | - | - |
5. Process Flows:
Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing
6. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln
7. Detection Devices:
Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter
8. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service
9. Shipping and Package:
10. Our aimed market:
Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
